How Geothermal Systems Work: A Simple Guide

What You're Really Asking When You Search "How Does a Geothermal System Work"

How does a geothermal system work is a question more Charleston homeowners are asking as energy bills climb and the appeal of a reliable, low-maintenance comfort system grows. The short answer: a geothermal system moves heat between your home and the ground beneath it — rather than generating heat by burning fuel — using the fact that just 10 feet below the surface, the earth holds a remarkably steady temperature of around 55°F year-round.

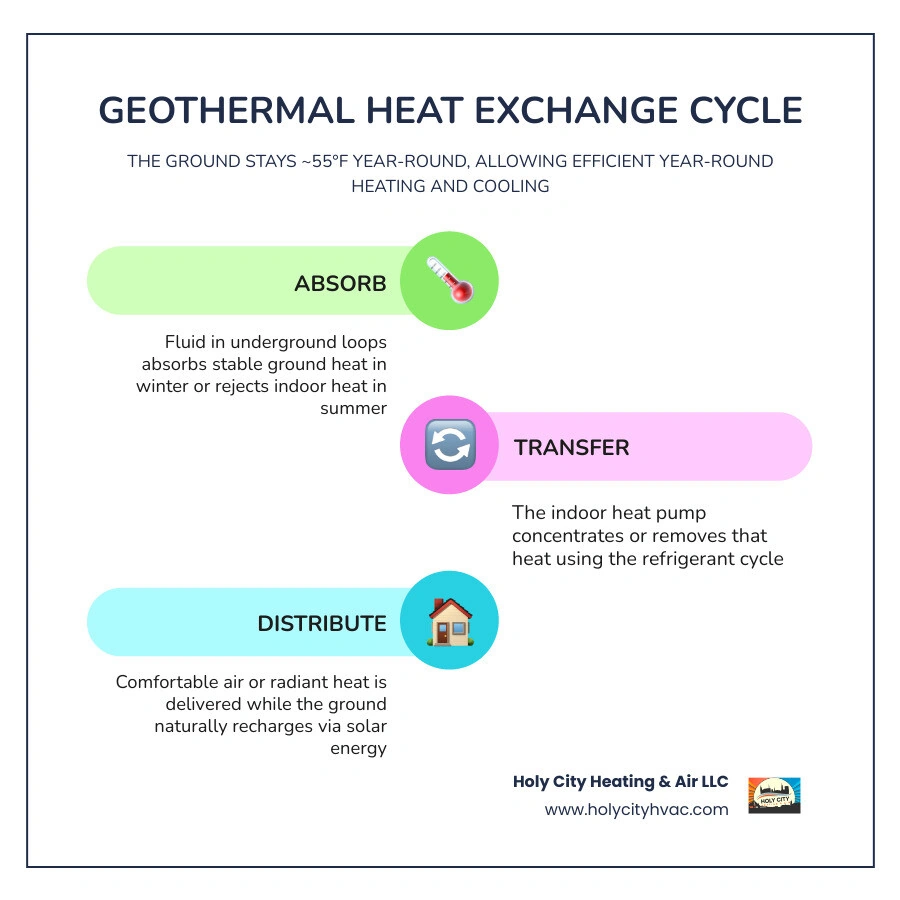

Here's a quick breakdown of how it works:

1. Underground loops filled with water and a safe antifreeze solution are buried in your yard
2. The fluid absorbs heat from the ground in winter and carries it inside
3. An indoor heat pump concentrates that heat and distributes it through your home
4. In summer, the process reverses — the system pulls heat out of your home and deposits it back into the cooler ground
5. The ground recharges naturally — the sun constantly replenishes the thermal energy stored below the surface

Unlike a gas furnace (which tops out around 98% efficiency) or even an air-source heat pump that struggles when outdoor temperatures swing to extremes, a geothermal system draws from a stable, renewable energy source that never fluctuates with the weather above ground. The EPA has identified geothermal heat pumps as the most energy-efficient, environmentally friendly, and cost-effective heating and cooling technology available. That's a strong endorsement — and it's backed by real performance data showing these systems can cut heating, cooling, and hot water costs by up to 70%.

For homeowners in Charleston, Mount Pleasant, Summerville, and surrounding South Carolina communities, that kind of consistent performance is especially valuable. Our coastal climate swings from humid summers to surprisingly chilly winters, and a system that handles both seasons with equal efficiency — without depending on unpredictable outdoor air temperatures — is a genuine advantage.

The Science of Stability: How Does a Geothermal System Work?

To truly understand the "magic" behind this technology, we have to look at the ground beneath our feet. While the air temperature in places like North Charleston or Daniel Island might hit 95°F in July and dip to 30°F in January, the earth is much better at keeping a secret.

The ground absorbs nearly 47% of the solar energy that reaches our planet. This makes the earth a massive, natural solar battery. Once you get about 10 feet below the surface, the temperature remains remarkably constant, typically between 50°F and 60°F (averaging out to about 55°F). This stability is the secret sauce of geothermal technology.

In the HVAC world, we talk a lot about "heat transfer." It is much easier (and cheaper) to move heat to or from a constant 55°F environment than it is to try and extract heat from freezing winter air or dump heat into a sweltering 100-degree afternoon. By tapping into this thermal energy storage, geothermal systems don't have to work nearly as hard as traditional units. If you want to dive deeper into why this matters, check out these 3 Things to Know About Geothermal Systems.

Core Components of a Ground-Source System

A geothermal system isn't just one machine; it’s a team of components working together to move energy. Here at Holy City Heating & Air, we often describe it as having three main parts:

1. The Ground Loop: This is a series of high-density polyethylene (HDPE) pipes buried in the earth. These pipes are incredibly durable—often lasting 50 years or more—and are filled with a water-based solution that acts as the heat transfer medium.
2. The Indoor Heat Pump Unit: This is the "brain" and the "muscle" of the operation. It sits inside your home (often in a garage, closet, or attic) and uses the refrigeration cycle to concentrate the energy gathered from the ground.
3. The Distribution System: This is how the comfort reaches your rooms. It can be traditional ductwork for forced air or a radiant system for heated floors.

Many high-efficiency systems also include a desuperheater. This clever addition uses excess heat from the system to provide much of your home's hot water, essentially giving you "free" hot water while the system is cooling your home. For a full overview of these setups, see our guide on Geothermal Heating and Cooling.

The Role of the Heat Pump in How a Geothermal System Works

The indoor unit is where the heavy lifting happens. It utilizes the same refrigeration science as your kitchen refrigerator or a standard air conditioner, but it applies it to the ground loop.

Inside the unit, a refrigerant circulates through an evaporator, a compressor, and a heat exchanger. In the winter, the fluid from the ground loops (which is warmer than the refrigerant) passes through the heat exchanger, causing the refrigerant to evaporate into a gas. The compressor then squeezes that gas, which raises its temperature significantly—enough to heat your home comfortably. If you're wondering how this differs from the unit currently sitting outside your house, we've broken it down in our article: Should I Choose a Heat Pump or Geothermal System.

Distribution Methods in How a Geothermal System Works

Once the heat pump has done its job, that warmth (or coolness) needs a way to get to you. In most Charleston retrofits, we utilize existing ductwork for a forced-air system. This is often the most straightforward path for homeowners moving away from a traditional furnace or heat pump.

However, geothermal is also perfect for radiant heating, where heated water circulates through pipes under your floors. This provides a very even, "invisible" heat that many find superior for comfort. When making these decisions, work with experts who understand both residential and larger-scale applications. You can learn more about Choosing an HVAC Provider with Geothermal and Commercial Expertise to ensure your system is designed correctly for your specific property.

Comparing Geothermal Loop Configurations for Charleston Properties

Not every yard in Mount Pleasant or Johns Island is the same. Some of our neighbors have sprawling acreage, while others have smaller lots or even waterfront property. The beauty of geothermal is its flexibility.

Horizontal loops are common where space allows, but in many of our more established neighborhoods, vertical bores are the way to go. These require specialized drilling equipment to place the loops deep into the earth, taking up very little surface area. If you live on the water, a pond or lake loop can be incredibly efficient, using the water's thermal mass instead of the soil. Choosing the right setup is essential for performance, so consider Choosing the Right Geothermal Cooling System based on your specific landscape.

Seasonal Performance: Heating in Winter and Cooling in Summer

One of the biggest misconceptions we hear is that geothermal is only for heating. In reality, it provides some of the best cooling performance available—which is a lifesaver during a Charleston July!

• In the Winter: The fluid in the ground loops is warmer than the outdoor air. It "picks up" heat from the 55°F earth and carries it to the indoor heat pump, which concentrates it and warms your home.
• In the Summer: The process reverses. The system pulls heat out of your warm indoor air and transfers it into the loop fluid. That fluid then travels into the ground, which is much cooler than the 95°F outdoor air. The earth acts as a "heat sink," absorbing the warmth and leaving your home refreshed.

This process doesn't just cool the air; it provides exceptional humidity control. Because the system runs in longer, more efficient cycles, it removes more moisture from the air than a standard AC that might "short cycle." You can read more about these Benefits of Geothermal Cooling Systems to see how they improve indoor air quality.

Maximizing Efficiency: How a Geothermal System Works in Extreme Weather

Standard air-source heat pumps lose efficiency as it gets colder outside because there is less heat in the air to grab. Geothermal doesn't have this problem. Because the ground temperature never changes, the system maintains 400-600% efficiency even on the coldest nights in January or the hottest days in August.

What does that percentage mean? For every unit of electricity used to power the system, it moves four to six units of heat. Compare that to a high-end gas furnace, which can never be more than 100% efficient (as it can't create more energy than is in the fuel it burns). This leads to a 25% to 50% energy reduction compared to even the best air-source systems. For more on the specific cooling advantages, check out our post on Geothermal Cooling Benefits.

Environmental and Long-Term Benefits for South Carolina Homeowners

Choosing geothermal isn't just about the monthly savings; it’s about a long-term investment in your home and the environment. Installing one of these systems is the environmental equivalent of planting 750 trees or taking two cars off the road forever.

The longevity of these systems is also unmatched. While a traditional outdoor AC unit might last 12 to 15 years in our salty, humid air, the indoor components of a geothermal system typically last 24 to 25 years. The underground ground loops? They are rated for 50+ years. Once those pipes are in the ground, they are there for the long haul, often outlasting the mortgage on the house!

These systems are ENERGY STAR certified and use 61% less energy than standard models. By Going Green Geothermal Heating, you are choosing a path that reduces greenhouse gas emissions and eliminates the need for fossil fuel combustion in your home.

Frequently Asked Questions about Geothermal Mechanics

Is a geothermal system right for my Charleston property?

While most homes can be fitted for geothermal, the "best" loop type depends on your specific lot. If you have a small yard in West Ashley, vertical loops are likely the answer. If you have a larger lot in Summerville, horizontal trenches might be more feasible. We also look at soil composition—moist soil transfers heat better than dry, sandy soil. For a deeper dive into whether your home is a candidate, read Is a Geothermal HVAC System Right for You.

How much energy can I actually save with geothermal?

On average, homeowners see a 30% to 70% reduction in their utility bills. Because the system is moving heat rather than creating it, the "fuel" (the earth's heat) is free. When you factor in the "free" hot water generated by a desuperheater, the savings add up quickly. These systems often return the additional upfront investment in 5 to 10 years through energy savings alone. This applies to businesses too; see our page on Commercial HVAC Geothermal for more data.

What maintenance does a geothermal system require?

One of the best things about geothermal is how little maintenance it needs compared to traditional systems. There is no outdoor condenser unit to get clogged with leaves, salt spray, or dirt.

• Regularly: Change your indoor air filters (just like a normal system).
• Annually: Have a professional check the loop pressure and the indoor components.
• Long-term: The loops themselves require virtually zero maintenance once installed.

Conclusion

Understanding how does a geothermal system work is the first step toward true energy independence and home comfort. By leveraging the constant 55-degree temperature of the South Carolina earth, you can enjoy a system that is quieter, longer-lasting, and significantly more efficient than anything else on the market.

At Holy City Heating & Air, we’ve been the trusted name in Charleston HVAC since 2015, bringing over 20 years of expertise to every job. Whether you are in Mount Pleasant, Summerville, or out on Kiawah, our family-owned team is here to help you navigate renewable energy. We pride ourselves on integrity and long-lasting comfort. If you're ready to see how the earth's natural energy can transform your home's comfort, we're ready to dig in.

For more information on making the switch, explore our dedicated section on Geothermal Heating and Cooling and see how we can help you go green while staying cool.
