The Hidden Danger of Improper Relief Valve Discharge on Concrete Slabs
You walk into your garage or utility closet and notice a puddle forming around the base of your water heater, but that water is not just a simple tank leak—it is a warning sign of a severe pressure buildup. At Holy City Heating & Air, our team frequently responds to these alarm bells. Figuring out exactly where to safely route water heater relief valves in Summerville slab homes is one of the most critical plumbing decisions you can make for your property. A triggered Temperature and Pressure Relief (TPR) valve is a vital safety mechanism engineered to prevent catastrophic tank failure, but it creates an immediate, severe hazard if the discharge path is improperly routed.
Unlike elevated houses built with crawlspaces or traditional basements, slab foundations present unique architectural constraints that completely eliminate standard gravity drainage options. Your water heater sits directly on ground level, meaning there is nowhere for the water to drop vertically. Without a clear, code-compliant exterior path, homeowners face the very real risk of sudden interior flooding or being unexpectedly exposed to 210°F boiling water. Determining the correct routing path during a system replacement or a routine inspection is a critical decision that heavily impacts both your daily home safety and your adherence to local building codes. If you are unsure about how your current system is configured, our professional plumbing services can evaluate your setup and secure a safe, code-compliant discharge path.
Understanding the 210°F Danger Zone
To understand why proper routing is so critical, we always explain the immense thermal forces at work inside your water heater to our customers. As your system heats cold water, that water physically expands. In a closed plumbing loop, this thermal expansion causes the internal pressure to spike. If the internal thermostat fails and the burner continues to run, the water can become superheated. This is where your TPR valve steps in to save the day.
TPR valves are specifically engineered to open automatically when internal tank temperatures reach a critical threshold of 210°F or when the internal pressure exceeds 150 PSI. When triggered, the valve releases a high-volume surge of boiling water and steam to relieve the stress and prevent an explosive tank failure. Releasing 210°F boiling water directly onto an interior garage floor, a laundry room, or a utility closet slab creates an immediate slip hazard and a severe burn risk for anyone standing nearby.
The sheer volume of water released during a major pressure event can quickly overwhelm standard floor layouts if it is not properly directed. A typical residential water heater holds between 40 and 50 gallons of water, and a wide-open TPR valve can dump a significant portion of that volume in a matter of minutes. If your system is showing signs of distress or the valve is weeping, scheduling prompt water heater service and repair with our experienced technicians is essential to prevent a full-scale pressure release.
• Normal Operation — Internal Temperature: 120°F - 140°F — Internal Pressure: 50 - 80 PSI — TPR Valve Action: Closed and sealed tight.
• Mild Thermal Expansion — Internal Temperature: 140°F - 160°F — Internal Pressure: 100 - 140 PSI — TPR Valve Action: May occasionally weep small drops of water.
• Critical Failure Risk — Internal Temperature: Approaching 210°F — Internal Pressure: Exceeding 150 PSI — TPR Valve Action: Fully opens, rapidly discharging boiling water.
Why Summerville Slab-on-Grade Homes Complicate Drainage
In our years of serving the Lowcountry, we've found that traditional plumbing advice found online often assumes the presence of a basement or a raised crawlspace where discharge pipes can be easily routed downward through the floorboards. However, the architectural reality we navigate every day is very different. Summerville slab-on-grade homes mean the water heater rests directly on a concrete foundation at ground level, which severely limits the vertical drop required for gravity-fed drainage.
Routing pipes through or under an existing concrete slab is structurally invasive, incredibly expensive, and often entirely impractical for retrofits or standard system replacements. You cannot simply drill a hole through the floor, as you risk striking post-tension cables, existing plumbing lines, or undermining the structural integrity of the foundation itself. Because the water cannot go down, it must go out.
Plumbers must find creative, code-approved ways to route these discharge lines horizontally through exterior walls without creating tripping hazards on patios or aesthetic blights on the side of the house. This requires precise calculations to maintain a continuous downward slope. For homeowners in Summerville and surrounding service areas, finding a professional team like ours who understands the specific constraints of slab architecture is the only way to ensure the job is done safely and correctly.
Compounding Factors: High Water Tables and Late-Summer Demand
The Lowcountry environment adds another complex layer to exterior water discharge. You are not just dealing with the plumbing inside the house; you have to account for where that water goes once it reaches the outdoors. During August's late-summer peak usage, our team sees household plumbing systems face significantly increased demand. Kids are back to school, washing machines are running back-to-back loads of clothes, and multiple showers are taken daily. This heavy usage cycle raises the likelihood of pressure fluctuations and thermal expansion within the tank.
If a TPR valve triggers during this heavy usage period, the resulting discharge hits the exterior soil. This is a pattern we see often: Summerville's naturally high water table and humid subtropical climate mean that the ground is often already saturated from afternoon thunderstorms and high humidity. Discharging high volumes of water directly against the exterior foundation in these conditions can lead to immediate surface pooling.
The dangers of exterior pooling include:
• Foundation Degradation: Persistent moisture resting against a concrete slab foundation can slowly compromise its structural integrity over time.
• Biological Growth: Standing water in a humid climate rapidly encourages mold and mildew growth along the lower exterior walls.
• Pest Attraction: Termites, mosquitoes, and roaches are highly attracted to the damp soil created by a frequently discharging relief valve.
Because the soil cannot absorb the water quickly enough, routing the discharge pipe requires careful consideration of the exterior landscaping and grading to ensure the water moves safely away from the home's footprint.
International Plumbing Code (IPC) Requirements for Relief Valves
Because of the severe risks associated with boiling water and pressure vessels, municipal building codes do not leave TPR valve routing up to guesswork. IPC Section 504.6 strictly regulates exactly how and where these valves can discharge to protect occupants and property. Adhering to these regulations is a standard practice for our installers, ensuring you pass home inspections and maintain your homeowner's insurance coverage.

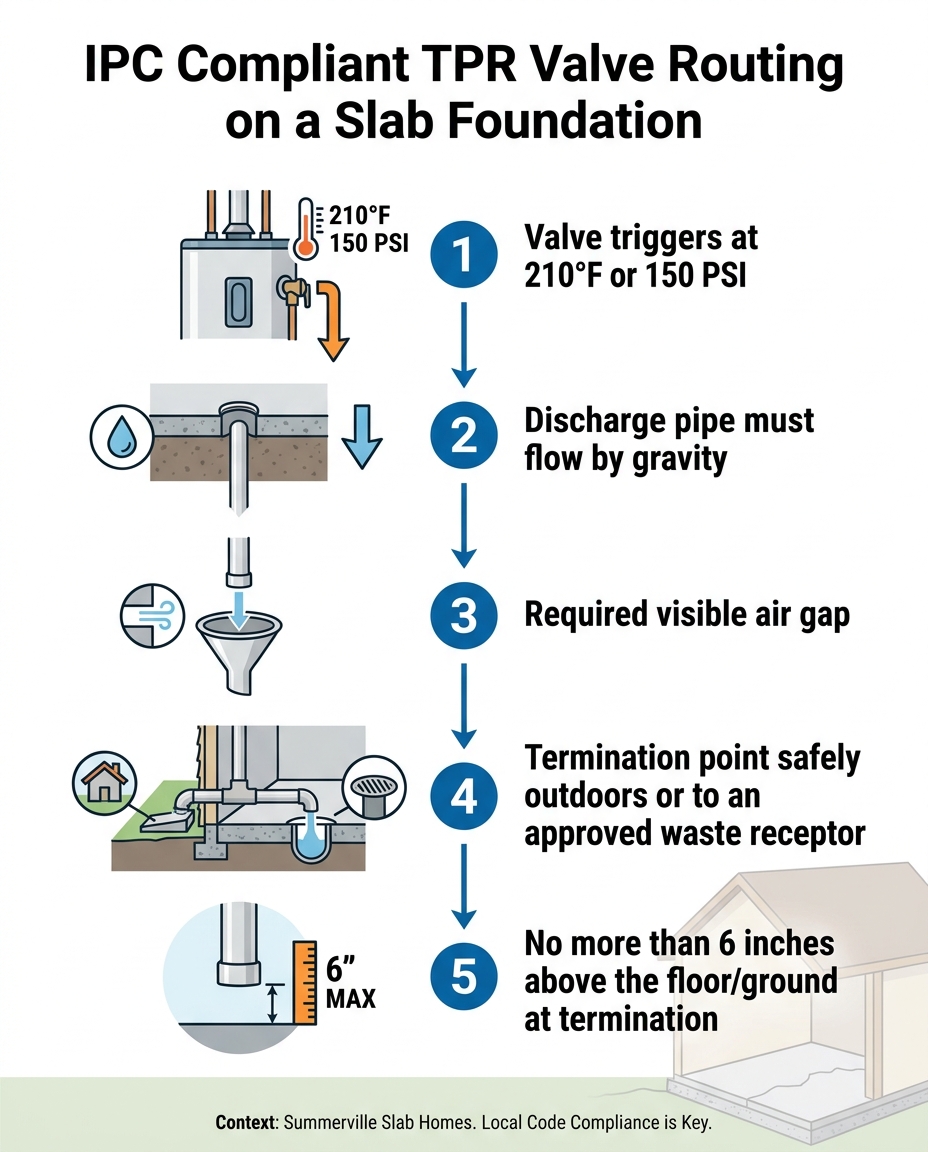

Key IPC 504.6 regulatory requirements include:
1. Gravity Flow: The discharge pipe must flow continuously downward by gravity. It cannot travel upward at any point, as this would trap water that could stagnate, corrode the pipe, or freeze during a rare winter cold snap, effectively plugging the safety valve.
2. Proper Sizing: The discharge pipe must be at least the same diameter as the outlet of the valve itself (typically 3/4 inch). Reducing the pipe size restricts the flow and can cause the tank to rupture.
3. Approved Materials: The pipe must be made of materials rated for high temperatures, such as copper, CPVC, or specific grades of PEX. Standard PVC will melt and fail when exposed to 210°F boiling water.
4. Safe Termination: The termination point must be directed to an approved waste receptor or routed safely outdoors where it will not cause structural damage or present a scalding hazard to people or pets.
5. Floor Clearance: The end of the pipe must terminate no more than 6 inches above the floor or the ground level to prevent the boiling water from violently splashing upward when discharged.
The Importance of the Air Gap
One of the most critical, yet frequently misunderstood, code requirements our technicians educate homeowners on is the visible air gap. In plumbing terms, an air gap is the unobstructed vertical space between the end of the water supply outlet and the flood level rim of the receiving vessel. If your TPR valve routes into an indirect waste receptor (like a floor drain or a hub drain), the pipe cannot be physically sealed or submerged into the drain.
This gap serves two vital purposes. First, it allows homeowners to visually inspect the system; if you see water dripping across the gap, you instantly know the valve is weeping and the system needs attention. Second, and most importantly, it prevents back-siphonage. If the municipal sewer system backs up, the air gap physically breaks the connection, ensuring that contaminated, hazardous standing water cannot be siphoned backward into your home's clean, potable water supply.
Approved Routing Solutions for Concrete Slabs
Achieving full code compliance on a slab-on-grade home requires professional plumbing strategies. Because you cannot easily drop a line through the floor, our licensed technicians at Holy City Heating & Air utilize specific, approved methods to handle the discharge safely.
• Indirect Waste Receptors: If the water heater is located in an interior utility room far from an exterior wall, plumbers may install a specialized hub drain or indirect waste receptor. This securely catches the discharge across an air gap and routes it safely into the home's main sanitary drainage system.
• Exterior Wall Penetration: If the unit is located in a garage or against an outer wall, professionals will carefully core through the exterior wall (whether it is brick, stucco, or siding) to route the pipe outside. They will ensure the pipe maintains its downward slope and terminates safely, no more than 6 inches above the exterior ground level.
• Grading and Splash Blocks: If the pipe is routed outdoors, technicians must ensure the surrounding landscaping grades away from the slab. They will often utilize concrete or heavy-duty plastic splash blocks to safely diffuse the momentum of the 210°F water, directing it away from walkways, patios, and the foundation itself.
These solutions require precise calculation of pipe slope, proper material selection, and structural awareness. This level of technical difficulty is precisely why we emphasize understanding the dangers of DIY water heater installation. A well-meaning homeowner who incorrectly slopes a discharge pipe or uses the wrong type of plastic can inadvertently turn a simple water heater into a highly dangerous, non-compliant hazard.
Why Professional Compliance Matters for Your Entire Home
Treating a TPR valve discharge pipe as an afterthought can have severe ripple effects throughout your entire property. Improperly routed relief valves are one of the most common reasons homes fail municipal building inspections. If you ever plan to sell your house, a pattern we see often is an unpermitted or incorrectly piped water heater immediately stalling the closing process until a licensed professional corrects the issue.
Furthermore, a localized plumbing failure can heavily impact the safety of surrounding infrastructure. Just as improper exhaust ventilation creates hidden dangers for heating systems, an improper water discharge setup threatens the drywall, electrical components, and structural framing surrounding the tank. If a non-compliant TPR valve triggers and floods your garage, your homeowner's insurance provider may deny the water damage claim due to the code violation.
This is where our deep local expertise in Lowcountry building codes makes all the difference. Our professional installers are intimately familiar with Summerville's specific municipal requirements to ensure that your installation is strictly compliant with regional safety standards. We know exactly how to navigate the challenges of slab foundations and high water tables, ensuring your system is completely safe from the tank to the final termination point. Furthermore, routine professional maintenance catches weeping valves and thermal expansion issues long before they escalate into full-blown, high-volume pressure events.
Securing Your Home's Plumbing Safety
Navigating the specific plumbing requirements of a slab home does not have to be a source of stress, but it does require professional attention. Ensuring your TPR valve is routed correctly protects your property from severe water damage, structural degradation, and extreme scalding risks. Don't wait for a high-pressure event to discover that your relief valve is improperly piped.
Take a moment to look at your water heater today. If you cannot clearly trace where that discharge pipe goes, or if it terminates directly onto your garage floor, it is time to bring in our experts at Holy City Heating & Air. Securing a code-compliant discharge path gives you the confidence that your home is safe, up to standard, and fully prepared to handle the thermal demands of your plumbing system.
Frequently Asked Questions
Where should a water heater pressure relief valve drain on a slab?
On a slab foundation, the relief valve should drain either outdoors to a safe location or indoors into an approved indirect waste receptor. The piping must maintain a continuous downward gravity flow without any traps. It must also terminate no more than six inches above the ground or the receptor to prevent splashing.
Can a TPR valve drain outside in South Carolina?
Yes, a TPR valve can drain outside in South Carolina, provided it meets local plumbing codes. The termination point must point downward, end no more than six inches above the ground, and discharge in an area that does not cause structural damage to the foundation or create a scalding hazard on pedestrian walkways.
What happens if a water heater relief valve is not piped correctly?
If a relief valve is piped incorrectly, it can create severe scalding hazards or cause extensive water damage to your home. If the pipe is routed upward, water can become trapped and freeze or corrode, effectively blocking the valve. A blocked TPR valve can lead to dangerous pressure buildup and a potential tank explosion.
How far from the floor should a water heater discharge pipe be?
According to the International Plumbing Code, the discharge pipe must terminate no more than six inches above the floor or the waste receptor. This specific distance ensures that if boiling water is released, it is directed safely downward without violently splashing upward onto anyone standing nearby.
Why is my water heater relief valve leaking onto my garage floor?
A leaking relief valve usually indicates thermal expansion, excessive internal tank pressure, or a water temperature that is set too high. It can also mean the valve itself has become faulty or calcified over time. If you notice a puddle forming on your garage floor, you should have a licensed professional inspect the system immediately.
